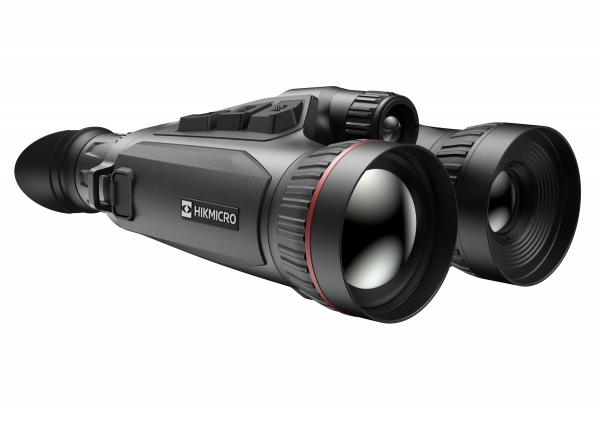

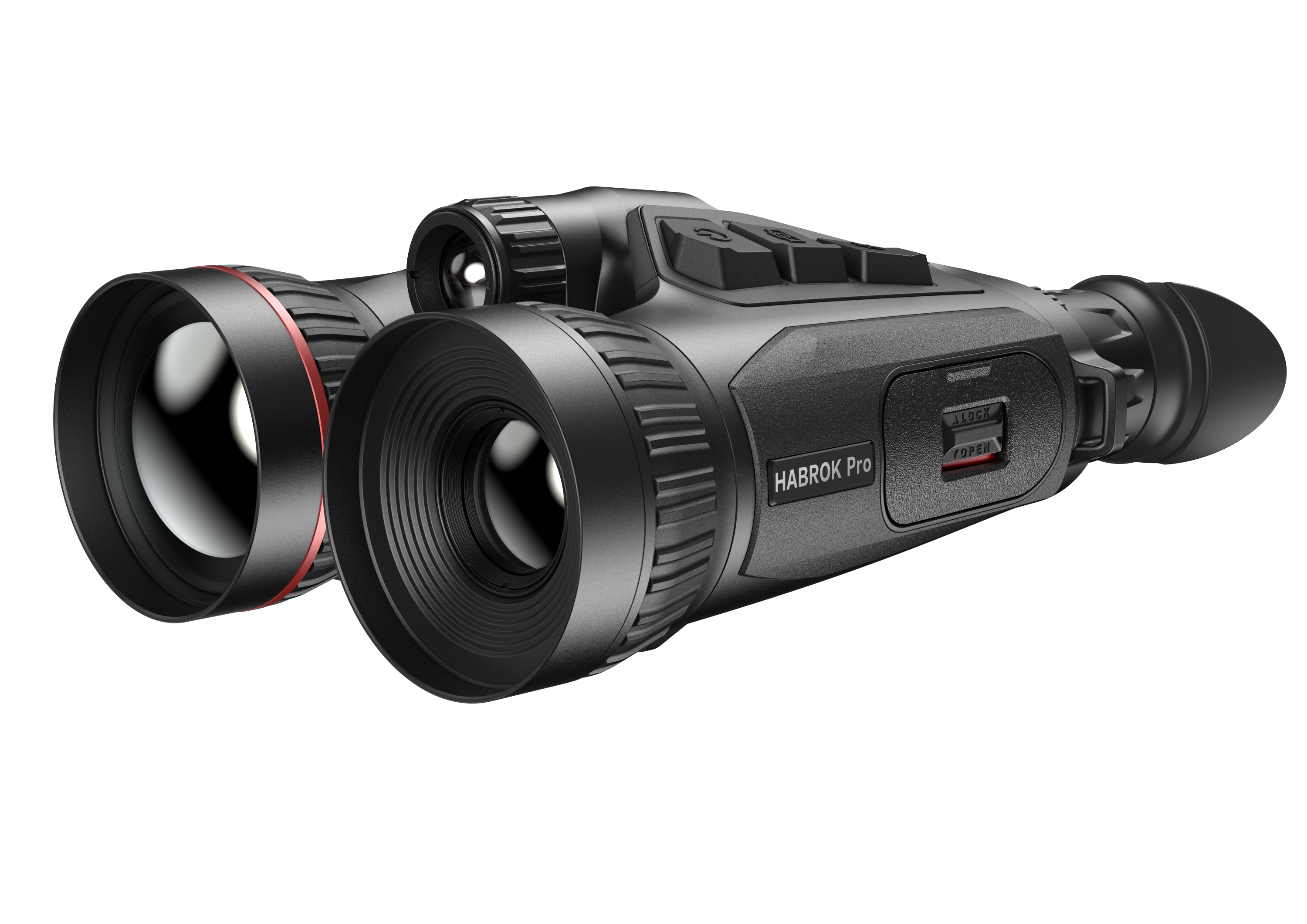

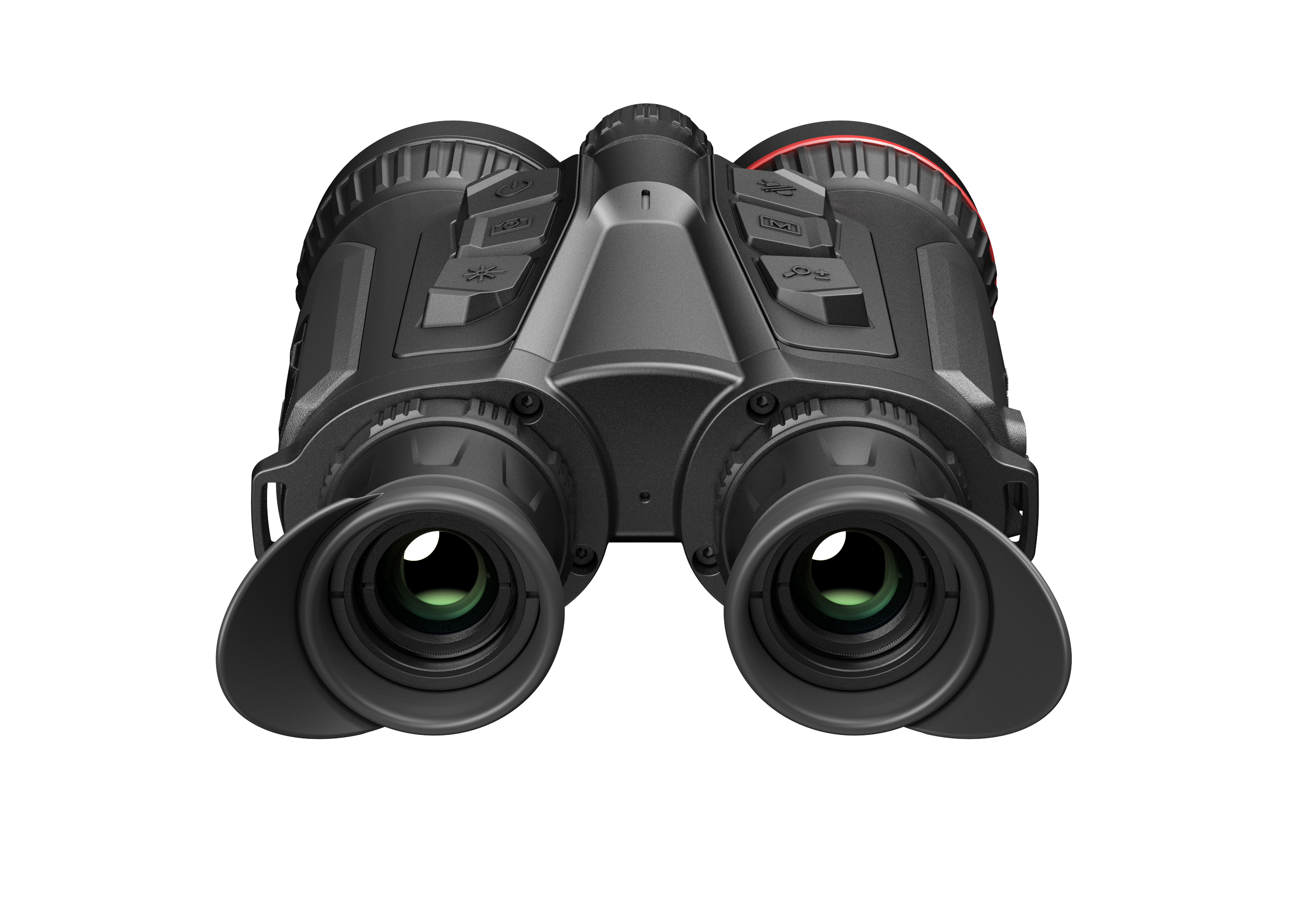

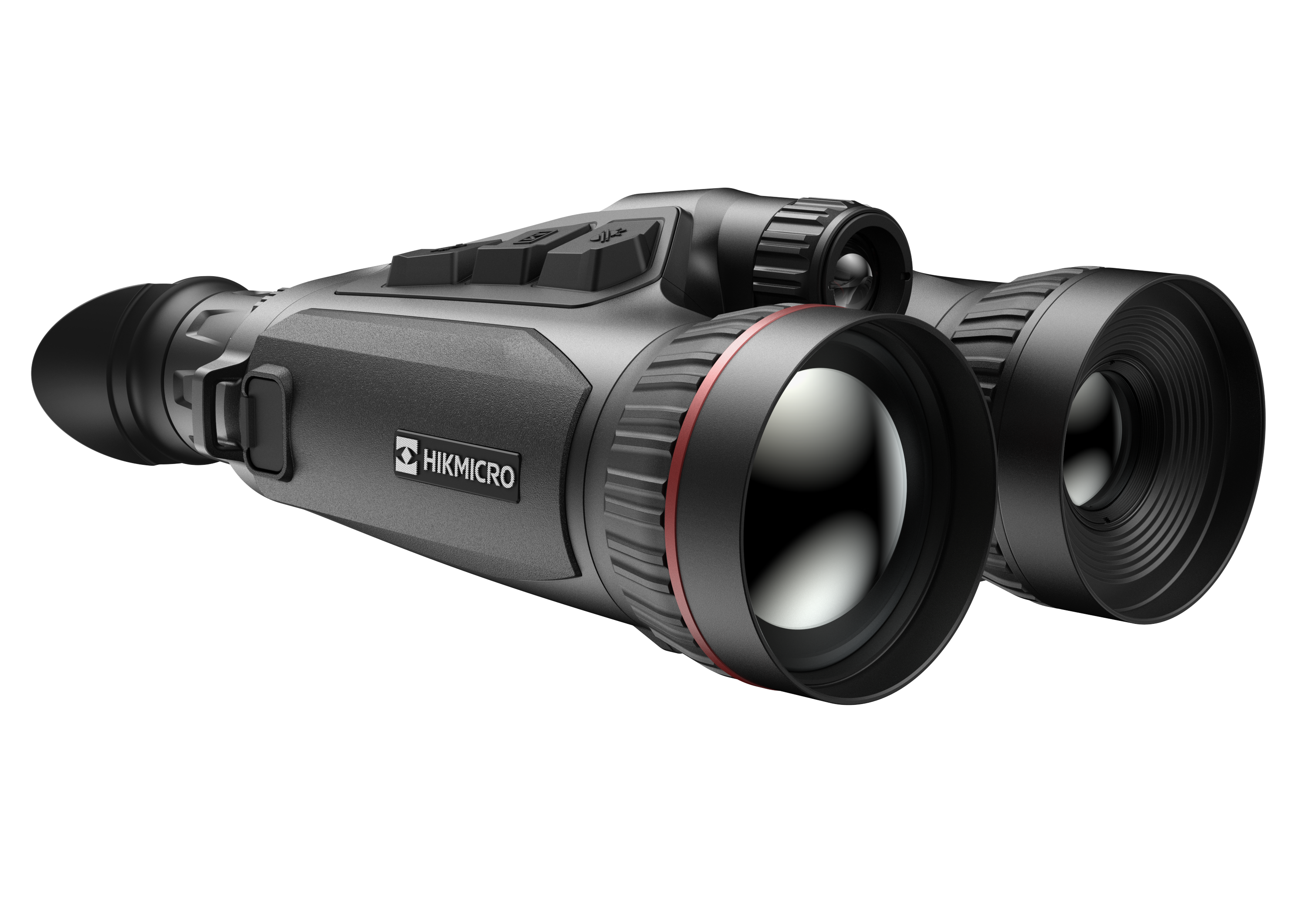

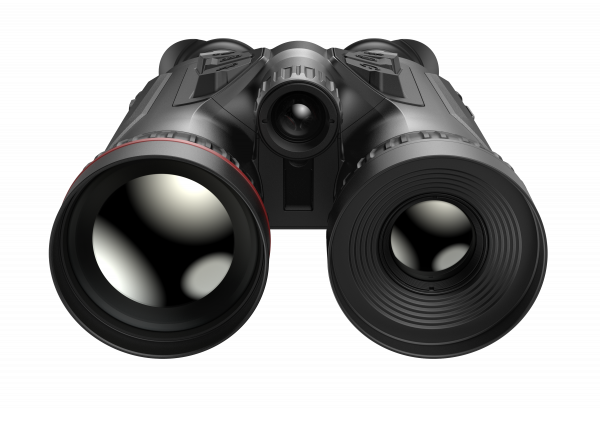

Hikmicro Binocular Habrok Pro HX60LS | Thermal imaging binoculars
The HIKMICRO Habrok Pro HX60LS combines a powerful thermal imaging and a high-resolution digital viewing system in a robust, ergonomic binocular. The highly sensitive 1280 × 1024 VOx thermal imaging sensor with a NETD of less than 15 mK works in conjunction with the bright 60 mm F1.0 objective lens to deliver clear, steady, and high-contrast thermal images, even in rain, fog, or complete darkness. With a detection range of up to 3100 meters, the HX60LS offers enormous performance reserves for hunting, search and rescue, wildlife observation, and maritime operations. Additionally, the integrated 4K digital sensor with a 60 mm F2.2 objective lens ensures crisp, clear images in daylight and low-light conditions. An integrated laser rangefinder with a 1000-meter range and an interchangeable 850 nm IR illuminator significantly expand the range of applications. The high-contrast 0.49″ OLED display, an internal 64 GB memory module, and photo, video, and audio recording functions make the Habrok Pro HX60LS a fully-fledged all-in-one system. With up to 5.5 hours of operating time, a replaceable battery, and an IP67 protection rating, it is reliably ready for use in any environment.
Technical Specifications:
Thermal Imaging Module:
• Sensor: VOx Uncooled Focal Plane Array
• Resolution: 1280 × 1024
• Frame Rate: 50 Hz
• Pixel Pitch: 12 μm
• Spectral Range: 8–14 μm
• NETD: < 15 mK (@ 25 °C, F#=1.0)
• Lens: 60 mm, F1.0
• Focus: Focus ring
• Detection Range: 3100 m
• Minimum Focus: 3 m
• Magnification: 2.6× – 20×
• Field of View: 14.6° × 8.8° / 25.6 m × 15.4 m @ 100 m
Digital Vision Module:
• Sensor: 1/1.8" CMOS
• Resolution: 3840 × 2160 (4K)
• Lens: 60 mm, F2.2
• Minimum focusing distance: 3 m
• Focus: Focus ring
• Magnification: 5.5× – 22×
• Field of view: 7.3° × 4.1° / 12.6 m × 7.2 m @ 100 m
• Smart IR: Yes
• IR illuminator: 850 nm, replaceable
• Night vision range: 400 m
Display & Features:
• Display: 0.49″ OLED, 1920 × 1080
• Thermal Image Palettes: Black Hot, White Hot, Red Hot, Fusion, Red Mono, Green Mono
• Digital Palettes: Day, Night, Green, Yellow Auto
• Exit Pupil: 8 mm
• Interpupillary Distance: 15 mm (adjustable 60–74 mm)
• Diopters: -5D to +3D
• Brightness / Tone / Contrast: Adjustable
• FFC Calibration: Auto, Manual, External
• Image Pro 3.0: Yes
• Sync Pro: Yes
System Features:
• Video Recording: Yes
• Photo Recording: Yes
• Audio Recording: Yes
• Storage: 64 GB eMMC internal
• Picture-in-Picture (PIP): Yes
• Hotspot (WiFi): Yes
• Hot Track: Yes
• GPS: Yes
• Digital Compass: Yes
• Local Album: Yes
• Standby Mode: Yes
Power supply:
• Battery type: replaceable Li-ion battery pack
• Runtime: up to 5.5 hours (@25 °C, hotspot off, LRF on)
• Power supply: USB-C 5 V / 9 V, 3 A
• External power supply & direct charging: supported
General:
• Dimensions: 152.8 × 81.95 × 231.5 mm
• Operating temperature: -30 °C to +55 °C
• Weight: 1050 g (including battery)
• Protection class: IP67
• Adapter thread: 1/4"-20 UNC
Laser rangefinder:
• Laser class: Class 1
• Wavelength: 905 nm
• Range: up to 1000 m
• Accuracy: ±1 m
• Minimum distance: 10 m
Scope of delivery:
• HIKMICRO Habrok Pro HX60LS
• 2× Li-ion battery packs
• Type-C cable
• IR illuminator (replaceable)
• Tripod adapter
• Binocular harness / carrying case
• Battery charger
• Neck strap
• Quick start guide
• Lint-free cleaning cloth
Note:
Thermal devices may be subject to export restrictions. Please check with the relevant authorities regarding any applicable licensing requirements.
